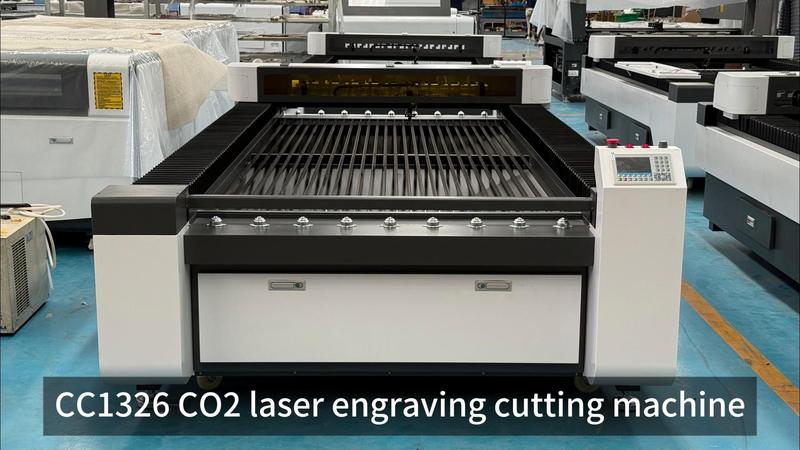

CC1326 laser engraving and cutting machine
CC1326 laser engraving and cutting machine
***
  • Parameters
  • Detail
价格
***
Model
CC1325
Working Area
1300*2600mm
Laser Power
80w/100w/120w/150w

CC1326 co2 laser cutting engraving machinehina 100w 150 watts 1390 co2 plywood mdf wood stencil jigsaw puzzle paper cake toppers acrylic letter laser cutting machine price for sale plastic sheet balsa wood with rdworks v8

The laser cutter is CO2 standing laser cutting machines designed for efficient processing of plastics, wood, textiles and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.

Product Description

1325 2023 1 7501325 2023 2 7501325 71325 41325 XQ 7501325 xq21325 xq31325 58 750

RDWORKS V8 Program with 14 languages

rd

what material can the laser handle?
MaterialEngravecut
Acrylic√√
Glass√×
Laminates√√
Leather√√
Paper√√
Plastics√√
Stone√×
Textiles√√
Wood√√
Metal x×

Parameter
NameCO2 laser engraving cutting machines
Model          CC1325
Working area   1300*2500mm
Laser power 80w,100w,130w,150w
Laser type        CO2 laser tube,Yongli, RECI   brand,>10000 hrs service life
Cooling ways                        Water cooling
Engraving speed                                  0-60000mm/min
Cutting speed0-40000mm/min
Laser output control0-100% controlled by software
Min engraving sizeEnglish letters,1*1mm
Scanning resolution               4000DPI
Locating accuracy                ≤0.01mm
Controlling software              DSP controlling system,RDWORKS V8
Format supported                DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc
Software environment          Windows xp/7/8/10
Compatible softwareCoreldraw,Autocad
Color separation output       Yes
Slope engraving                    Yes
Driving system                        High precision stepper motor with belt
Auxiliary accessories           Exhaust fan,fume tubes,air pump
Working table                         Blades table or Honey comb
Applicable materialsAcrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather
Working environment              Temperature0-45℃,Humidity5-95%(no condensate water.)
Power supply                        110v/220v,50hz/60hz
Weight550kg
Dimension365*190*110cm

1325 7501325 2023 (13)1325 2023 (16)1325 2023 (14)1325 SAPLAS (5)

Our Services

function application 750-2

Packaging & Shipping

8001325shipping

Certifications

ce certificate 750

Inquire now

Contact us

1326

This machine can use Wifi control, no need the wire to connect the computer.   So one computer can control many machines . Applicable materials:wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.Applicable industries:advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
