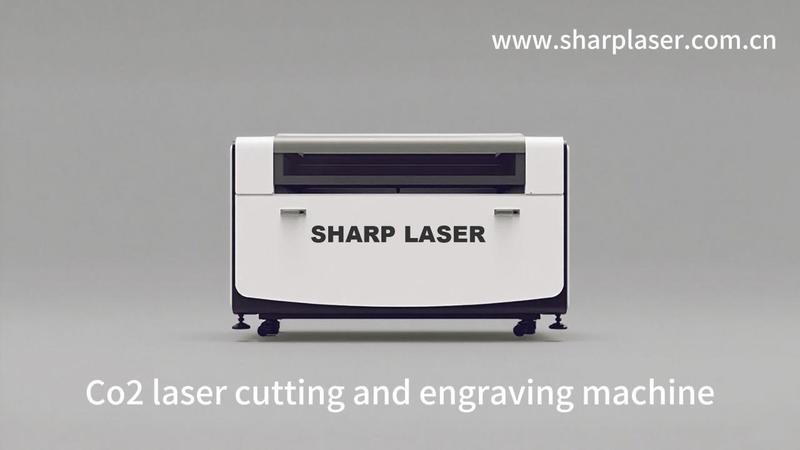

CC1309 laser cutting and engraving machine
***
- Parameters
- Detail
价格
***
Model
CC1309
Working Area
1300*900mm
Laser Power
80w/100w/120w/150w
CC1309 co2 laser cutting engraving machinehina 100w 150 watts 1390 co2 plywood mdf wood stencil jigsaw puzzle paper cake toppers acrylic letter laser cutting machine price for sale plastic sheet balsa wood with rdworks v8
The laser cutter is CO2 standing laser cutting machines designed for efficient processing of plastics, wood, textiles and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.
Product Description
RDWORKS V8 Program with 14 languages
| what material can the laser handle? | ||
| Material | Engrave | cut |
| Acrylic | yes | yes |
| Glass | yes | no |
| Laminates | yes | yes |
| Leather | yes | yes |
| Paper | yes | yes |
| Plastics | yes | yes |
| Stone | yes | no |
| Textiles | no | yes |
| Wood | yes | yes |
| Metal | no | no |
| Parameter | |
| Name | CO2 laser engraving cutting machines |
| Model | CC1610/CC1309 / CC0906 |
| Working area | 1600x1000mm/1300*900mm /900*600mm |
| Laser power | 80w,100w,130w,150w,180w |
| Laser type | CO2 laser tube,Yongli brand,>10000 hrs service life |
| Cooling ways | Water cooling |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-40000mm/min |
| Laser output control | 0-100% controlled by software |
| Min engraving size | English letters,1*1mm |
| Locating accuracy | ≤0.01mm |
| Controlling software | DSP controlling system,RDWORKS V8 |
| Format supported | DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc |
| Software environment | Windows xp/7/8/10 |
| Compatible software | Coreldraw,Autocad |
| Color separation output | Yes |
| Slope engraving | Yes |
| Driving system | High precision stepper motor with belt |
| Auxiliary accessories | Exhaust fan,fume tubes,air pump |
| Working table | Blades table or Honey comb |
| Applicable materials | Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather |
| Working environment Temperature | 0-45℃,Humidity5-95%(no condensate water.) |
| Power supply | 110v/220v,50hz/60hz |
| Weight | 350kg |
| Dimension | 185*145*105cm |
